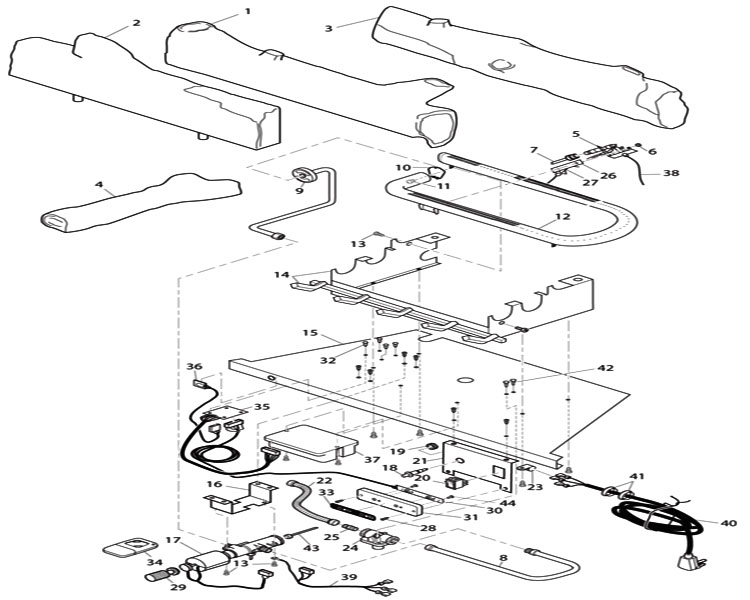

| 1 | 111625-04 | Back Log (#2) ( No Longer Available ) |
| 2 | 111625-03 | Middle Log (#1) ( No Longer Available ) |
| 3 | 111625-02 | Front Log (#3) ( No Longer Available ) |
| 4 | 111625-06 | Left Crossover Log (#4) ( No Longer Available ) |
| 5 | 111625-08 | Right Crossover Log (#5) ( No Longer Available ) |
| 6 | 104285-02 | Natrual Gas ODS Pilot ( NG8235 ) |
| 7 | 098249-01 | ODS Nut |
| 8 | 099387-05 | Pilot Tube |
| 9 | 111331-17 | Inlet Tube ( No Longer Available ) |
| 10 | 107572-04 | Burner Outlet Tube ( No Longer Available ) |
| 11 | 111124-01 | Burner Retainer Spring ( No Longer Available ) |
| 12 | 099056-26 | Burner Orifice Injector ( NG ) |
| 13 | 102772-01 | Burner ( No Longer Available ) |
| 14 | M10908-2 | Screw, Self-Tapping |
| 15 | ** | Part Not Available for Field Replacement |
| 16 | ** | Part Not Available for Field Replacement |
| 17 | 107573-01 | Valve Bracket ( No Longer Available ) |
| 18 | 107559-01 | Natural Gas Control Valve ( NG ) ( No Longer Available ) |
| 19 | 102445-01 | Piezo Ignitor |
| 20 | 102334-01 | Palnut Fastener |
| 21 | 107562-01 | Switch and Wire Assembly ( No Longer Available ) |
| 22 | 107685-01 | Bracket, Switch and Piezo ( No Longer Available ) |
| 23 | 101628-03 | Flexible Connector |
| 24 | 098544-01 | Wire Support Clip |
| 25 | 099415-12 | Natural Gas Pressure Regulator ( NG ) |
| 26 | 097809-03 | Fitting 3/8" Flare to 1/2" NPT |
| 27 | 107687-01 | Electrode Bracket ( No Longer Available ) |
| 28 | 103904-02 | Electrode ( No Longer Available ) |
| 29 | 100694-01 | Screw, #6 x 1 1/4" PH ( No Longer Available ) |
| 30 | 107560-01 | Magnetic Manual Override Handle ( No Longer Available ) |
| 31 | 107563-01 | Wall Switch and Cord ( No Longer Available ) |
| 32 | 107558-01 | Wall Switch Decorative Plate ( No Longer Available ) |
| 33 | 102349-02 | Support, PCB ( No Longer Available ) |
| 34 | 107561-01 | Wall Plate Decal ( No Longer Available ) |
| 35 | 107564-01 | Remote Control |
| 36 | 107565-01 | Receiver Assembly ( No Longer Available ) |
| 37 | 107565-02 | Sensor Assembly ( No Longer Available ) |
| 38 | 107566-01 | Module, Control Board |
| 39 | 098271-08 | Ignitor Cable ( No Longer Available ) |
| 40 | 107568-01 | Main Power Cable ( No Longer Available ) |
| 41 | 104015-01 | Power Cord ( No Longer Available ) |
| 42 | 101629-01 | 1.5" Bushing |
| 43 | 098303-02 | Screw, #6 |
| 44 | 107743-01 | Thermocouple Wire ( No Longer Available ) |
| 45 | 107847-01 | Screw, #6019 x 1/4" ( No Longer Available ) |
| 46 | 103977-02 | Plug, Button 3/4" ( No Longer Available ) |
| 47 | 103977-01 | Plug, Button 5/8" ( No Longer Available ) |
