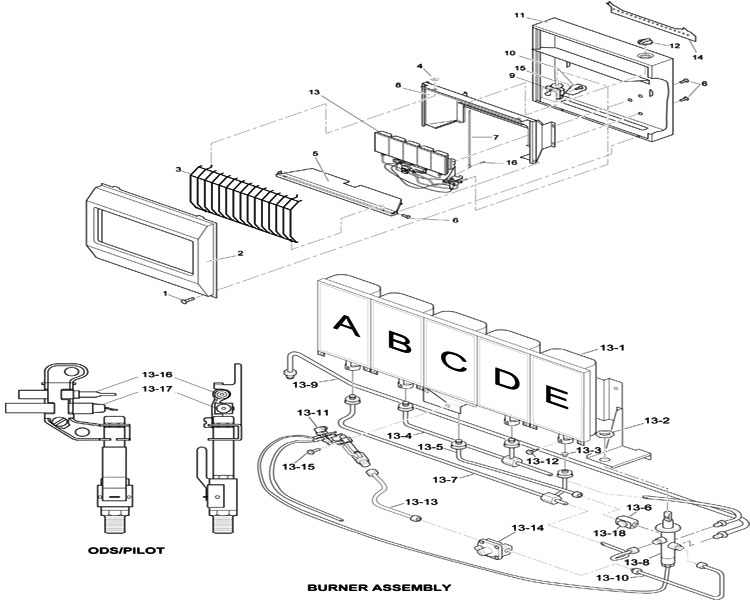

1 | 098304-01 | Screw, #10 x 3/8 " |
2 | 098742-03 |
Front Panel ( No Longer Available ) |
3 | 098238-07 | Grill Guard ( No Longer Available ) |
4 | 101108-01 | Clip-Grill Guard ( No Longer Available ) |
5 | 098198-04 | Apron ( No Longer Available ) |
6 | M11084-26 | Screw, #10 x 3/8 " ( No Longer Available ) |
7 | 098462-01 | Control Rod Assembly ( No Longer Available ) |
8 | 098457-02 | Reflector Assembly ( No Longer Available ) |
9 | 098867-05 | Regulator ( No Longer Available ) |
10 | M11084-38 | Screw, #8 x 3/8 " |
11 | 098456-03 | Cabinet Assembly ( No Longer Available ) |
12 | 098324-01 | Control Knob ( No Longer Available ) |
13 | See Detail | Burner Assembly |
13-1 | 099218-02 | Burner ( No Longer Available ) |
13-2 | 098508-01 | Valve Retainer Nut |
13-3 | 099056-02 | Injector ( No Longer Available ) |
13-4 | 099052-01 | Tubing-Valve to Plaque B & D ( No Longer Available ) |
13-5 | 099053-01 | Tubing-Valve to Plaque C ( No Longer Available ) |
13-6 | 099057-01 | Pressure Tap Fitting ( No Longer Available ) |
13-7 | 099054-01 | Tubing-Valve to Plaque A & E ( No Longer Available ) |
13-8 | 098932-06 | Control Valve ( No Longer Available ) |
13-9 | 099051-02 | Inlet Tubing ( No Longer Available ) |
13-10 | 099045-01 | Pilot Tubing-Valve to Regulator ( No Longer Available ) |
13-11 | 099059-01 | ODS/Pilot |
13-12 | M11084-37 | Screw, #8 x 1/4 " |
13-13 | 099047-02 | Pilot Tubing-Regulator to Pilot ( No Longer Available ) |
13-14 | 099918-01 | Pilot Regulator ( No Longer Available ) |
13-15 | M11084-26 | Screw, #10 x 3/8 " ( No Longer Available ) |
13-16 | 098593-01 | Thermocouple ( Use Replacement 098514-01 ) |
13-17 | 098594-01 | Ignitor Electrode |
13-18 | 098276-01 | Plug, 1/8 |
14 | 099066-01 | Mounting Bracket ( No Longer Available ) |
15 | 100537-01 | Regulator Bracket ( No Longer Available ) |
16 | 098325-01 | Roll Pin |
