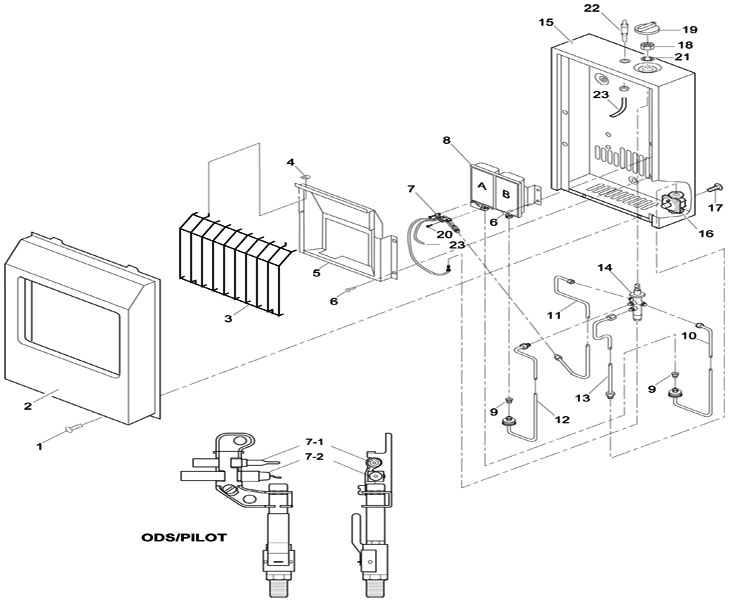

1 | 098304-01 | Screw, #10 x 3/8 " |
2 | 099467-07 | Front Panel Assembly ( No Longer Available ) |
3 | 099318-03 | Grill Guard ( No Longer Available ) |
4 | 101108-01 | Grill Guard Clip ( No Longer Available ) |
5 | 099469-02 | Reflector Assembly ( No Longer Available ) |
6 | M15823-37 | Screw Hex #8 x 1/4 " |
7 | 503329 | ODS/Pilot Assembly ( No Longer Available ) |
7-1 |
098514-01 | Thermocouple |
7-2 | 098594-01 | Ignitor Electrode |
8 | 099884-02 | Burner Assembly ( No Longer Available ) |
9 | 099056-06 | Injector ( No Longer Available ) |
10 | 099390-02 | Tubing - Valve to plaque A ( No Longer Available ) |
11 |
099387-05 | Pilot Tubing - Valve to pilot |
12 | 099392-01 | Tubing - Valve to plaque B ( No Longer Available ) |
13 | 099391-02 | Tubing - Regulator to valve ( No Longer Available ) |
14 | 100432-01 | Control Valve ( No Longer Available ) |
15 | 099468-17 | Cabinet Assembly ( No Longer Available ) |
16 | 099415-14 |
Gas Regulator ( Use Replacment 099415-17 ) |
17 | 098303-02 | Screw, #6 x 5/16 " |
18 | 098508-01 | Valve Retainer Nut |
19 | 099393-02 | Control Knob ( No Longer Available ) |
20 | M11084-26 | Screw, #10 x 3/8 " ( No Longer Available ) |
21 | 099818-01 | Internal Tooth Washer |
22 | 097159-04 | Piezo Ignitor |
23 |
098271-03 | Ignitor Cable |
