Comfort Glow Direct Vent Gas Fireplaces

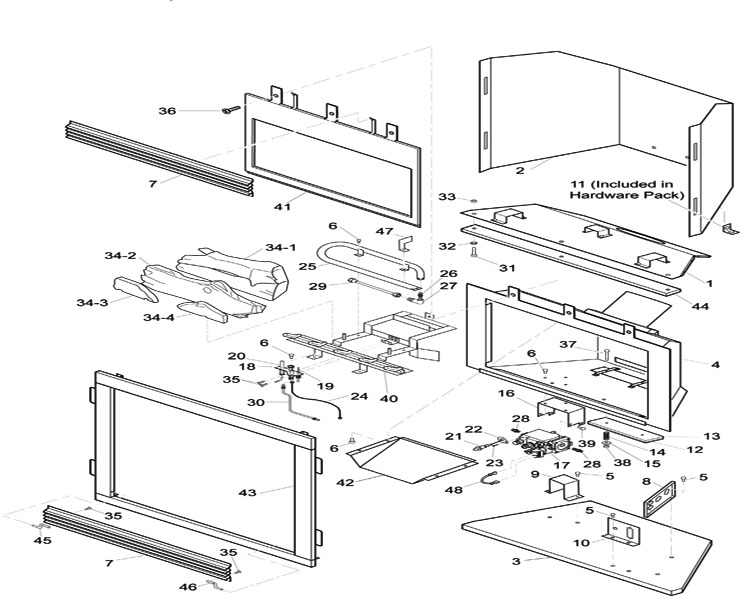

CHDV34N Comfort Glow Natural Gas Direct Vent Replacement Parts:
| 1 | 104445-01 | Top Outer Casing |
| 2 | 105278-01 | Outer Casing |
| 3 | 105297-01 | Bottom Outer Casing |
| 4 | 104479-10BR | Firebox Assembly |
| 5 | M11084-26 | Screw, Hex |
| 6 | M11084-46 | Screw, Hex |
| 7 | 105394-01 | Louver, Extruded |
| 8 | 104443-01 | Firebox Support, Right |
| 9 | 104486-01 | Firebox Support, Left |
| 10 | 104482-01 | Switch Bracket |
| 11 | 104483-01 | Floor Mounting Bracket |
| 12 | 104491-01 | Relief Cover |
| 13 | 104518-01 | Relief Cover Gasket |
| 14 | 104527-01 | Relief Spring |
| 15 | 104528-01 | Relief Washer |
| 16 | 104537-01 | Valve Bracket |
| 17 | 104496-01 | SIT Valve, Natural |
| 18 | 104497-01 | SIT Pilot, Natural |
| 19 | 104498-01 | Thermocouple |
| 20 | 104499-01 | Thermopile |
| 21 | 104500-01 | Ignitor |
| 22 | 104501-01 | Ignitor Bracket |
| 23 | 104502-01 | Ignitor Screw |
| 24 | 104503-01 | Ignitor Wire |
| 25 | 104504-01 | Burner |
| 26 | 104506-01 | Orifice |
| 27 | 104507-01 | Brass Elbow |
| 28 | 104508-01 | Brass Fitting |
| 29 | 104509-01 | Aluminum Tubing Assy |
| 30 | 104510-01 | Pilot Tubing Assy |
| 31 | 104954-01 | Screw |
| 32 | 104963-01 | Washer |
| 33 | 104955-01 | Nut |
| 34 | 105457-01 | Log Set |
| 34-1 | 105772-01 | Rear Log |
| 34-2 | 105772-02 | Front Log |
| 34-3 | 105772-03 | Left Log |
| 34-4 | 105772-04 | Right Log |
| 35 | M10908-2 | Screw |
| 36 | M12461-73 | Screw |
| 37 | H5C4-20B | Bolt |
| 38 | NTC-4C | Locknut |
| 39 | M12461-26 | Screw |
| 40 | 104555-02CJ | Grate Assembly |
| 41 | 104940-12 | Glass Door Assy |
| 42 | 104490-02CJ | Baffle |
| 43 | 105450-01 | Front Assembly |
| 44 | 104615-02 | Insulation |
| 45 | 104313-01 | Hinge, Pin - Left |
| 46 | 104313-02 | Hinge, Pin - Right |
| 47 | 105325-01 | Burner Baffle |
| 48 | 105575-01 | Wire Harness |
|
|
