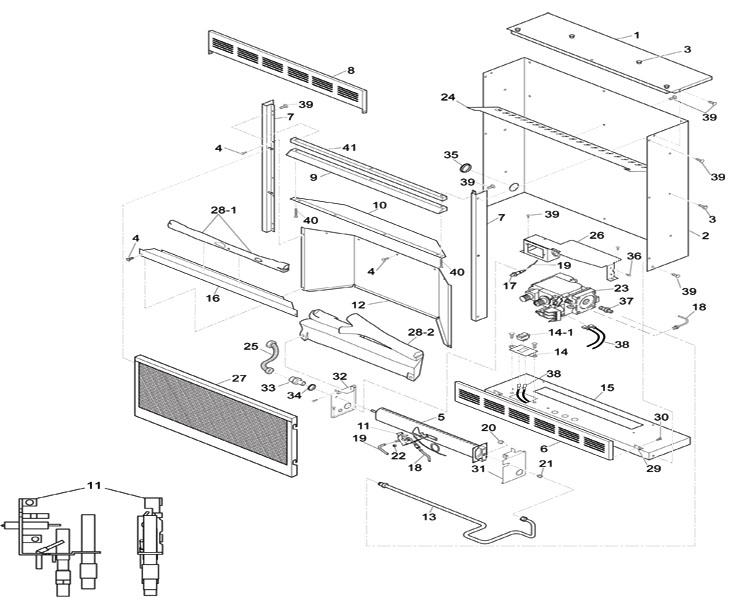

| 1 | 102633-02CK | Outer Casing Top ( No Longer Available ) |
| 2 | 102624-02 | Outer Casing ( No Longer Available ) |
| 3 | 099230-02 | Shoulder Screw |
| 4 | 098304-01 | Screw, #10 x 3/8" |
| 5 | 103447-02 | Burner ( No Longer Available ) |
| 6 | 104230-02 | Louvered Door, Service Assembly ( No Longer Available ) |
| 7 | 102635-02CK | Left and Right Side Front ( No Longer Available ) |
| 8 | 103692-01CK | Top Louver ( No Longer Available ) |
| 9 | 102730-01CJ | Firebox Hood ( No Longer Available ) |
| 10 | 102638-01 | Firebox Top ( No Longer Available ) |
| 11 | 103778-01 | Propane Gas ODS/Pilot Assembly ( LPG8414 ) |
| 12 | 102460-01CJ | Firebox Wrapper ( No Longer Available ) |
| 13 | 104322-01 | Burner Tube |
| 14 | 103587-02 | Plate Switch ( No Longer Available ) |
| 14-1 | 099998-01 | Switch, Heater |
| 15 | 104335-01CK | Outer Shell Base ( No Longer Available ) |
| 16 | 102649-02CJ | Branch Support ( No Longer Available ) |
| 17 | 097159-04 | Piezo |
| 18 | 099387-13 | Pilot Tube ( No Longer Available ) |
| 19 | 098271-07 | Ignitor Cable ( Use Replacement 098271-10 ) |
| 20 | 098251-03 | Injector ( No Longer Available ) |
| 21 | 098250-01 | Injector Holder |
| 22 | 098249-01 | Nut, M5 |
| 23 | 103781-02 | Propane Gas Control Valve ( Use Replacement 0820642 ) |
| 24 | 102639-01 | Baffle |
| 25 | 101628-01 | Flexible Connector |
| 26 | 104305-01 | Control Shield ( No Longer Available ) |
| 27 | 103295-02CJ | Screen Assembly ( No Longer Available ) |
| 28-1 | 104058-01 | Branch ( No Longer Available ) |
| 28-2 | 104077-01 | Main Log ( No Longer Available ) |
| 29 | 101386-02 | Hinge |
| 30 | 099194-11 | Rivets ( No Longer Available ) |
| 31 | 102645-02 | Burner Support, Right ( No Longer Available ) |
| 32 | 102645-03 | Burner Support, Left ( No Longer Available ) |
| 33 | 097809-02 | Connector, Male |
| 34 | 101629-01 | Bushing |
| 35 | 101629-02 | Bushing |
| 36 | M12461-26 | Gas Valve Screws |
| 37 | 098264-02 | Connector, Male |
| 38 | 103284-03 | Wire Harness |
| 39 | M11084-26 | Hex Head Screws #10 x .38 ( No Longer Available ) |
| 40 | 097403-02 | Pan Head Screws 1 3/4" ( No Longer Available ) |
| 41 | 102458-01CK | Middle Rail ( No Longer Available ) |
