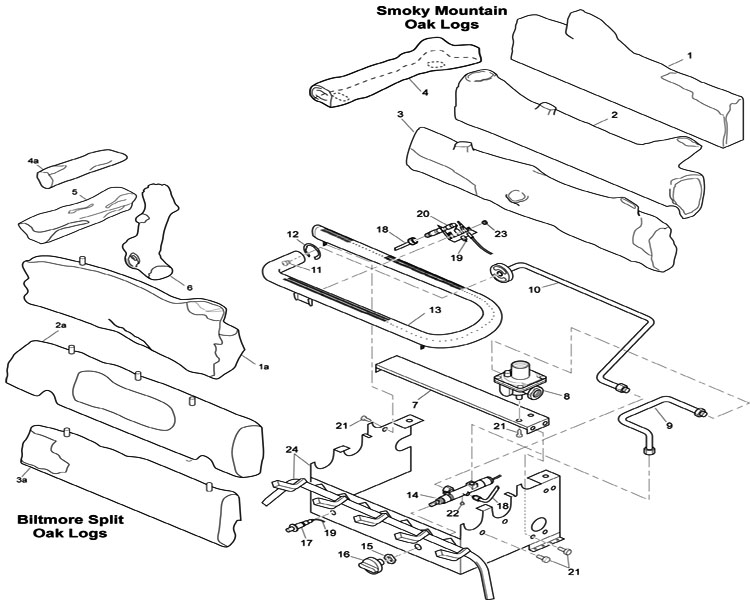

| 1 |
103008-02 |
Back Log (#1) ( No Longer Available ) |
| 1a |
105925-04 |
Back Log (#1) ( No Longer Available ) |
| 2 |
103009-02 |
Middle Log (#2) ( No Longer Available ) |
| 2a |
105924-04 |
Middle Log (#2) ( No Longer Available ) |
| 3 |
103010-02 |
Front Log (#3) ( No Longer Available ) |
| 3a |
105923-04 |
Front Log (#3) ( No Longer Available ) |
| 4 |
103011-02 |
Crossover Log (#4) ( No Longer Available ) |
| 4a |
105926-04 |
Left Back Crossover Log (#4) ( No Longer Available ) |
| 5 |
105927-04 |
Left Top Crossover Log (#5) ( No Longer Available ) |
| 6 |
105928-04 |
Right Bottom Crossover Log (#6) ( No Longer Available ) |
| 7 |
102844-02 |
Lower Bracket ( No Longer Available ) |
| 8 |
098867-14 |
Gas Regulator |
| 9 |
102798-01 |
Inlet Tube |
| 10 |
102779-03 |
Outlet Burner Tube ( No Longer Available ) |
| 11 |
099056-26 |
Burner Orifice Injector |
| 12 |
102843-01 |
Burner Clip |
| 13 |
102980-01 |
Burner |
| 14 |
102568-07 |
Control Valve ( No Longer Available ) |
| 15 |
098508-01 |
Valve Retainer Nut |
| 16 |
098354-01 |
Control Knob |
| 17 |
102445-01 |
Piezo Ignitor |
| 18 |
099387-08 |
Pilot Tube |
| 19 |
098271-10 |
Ignitor Cable |
| 20 |
104285-01 |
ODS Pilot |
| 21 |
M11084-38 |
Hex Screw, #8-18 x .38 |
| 22 |
098276-01 |
Hex Head Plug, 1/8 NPT |
| 23 |
098249-01 |
Nut, M5 |
| 24 |
102775-04CK |
Painted Base Assembly ( No Longer Available ) |
