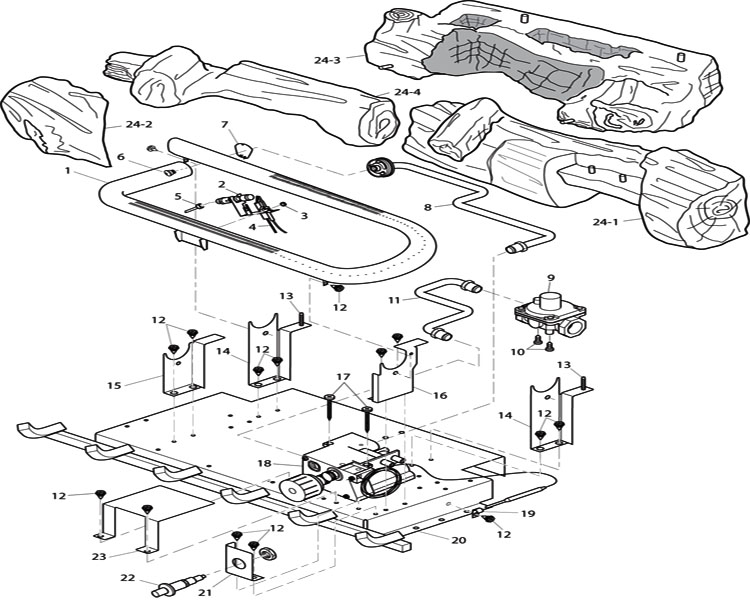

| 1 |
102772-01 |
Burner |
| 2 |
104286-01 |
ODS Pilot |
| 3 |
098249-01 |
ODS Nut |
| 4 |
098271-10 |
Ignitor Cable |
| 5 |
099378-09 |
Pilot Tube ( No Longer Available ) |
| 6 |
099056-16 |
Injector |
| 7 |
111124-01 |
Burner Retainer Spring ( No Longer Available ) |
| 8 |
110802-03 |
Outlet Tube ( No Longer Available ) |
| 9 |
0908867-10 |
Gas Regulator ( No Longer Available ) |
| 10 |
M11084-38 |
Screw, 8-18 x .36 |
| 11 |
110801-02 |
Inlet Tube ( No Longer Available ) |
| 12 |
M11084-6 |
Screw, 10-16 x .38 ( No Longer Available ) |
| 13 |
108631-01 |
Screw, 1 Blunt Tip Phillips" ( No Longer Available ) |
| 14 |
110790-03 |
Rear Burner Bracket ( No Longer Available ) |
| 15 |
110790-01 |
Left Front Burner Bracket ( No Longer Available ) |
| 16 |
110790-02 |
Right Front Burner Bracket ( No Longer Available ) |
| 17 |
099211-01 |
Screw, 10-16 x .5 |
| 18 |
098522-10 |
Gas Valve Assembly ( Use Replacment 0630545 ) |
| 19 |
098544-01 |
Thermobulb Clip |
| 20 |
|
Part Not Available for Field Replacement |
| 21 |
110793-01 |
Piezo Bracket ( Use Replacment 110793-01RV ) |
| 22 |
102445-01 |
Piezo Ignitor Service Kit |
| 23 |
111125-01 |
T-Stat Heat Shield ( No Longer Available ) |
| 24-1 |
111144-01 |
Front Log ( No Longer Available ) |
| 24-2 |
111144-02 |
Control Cover Log ( No Longer Available ) |
| 24-3 |
111144-03 |
Rear and Middle Log ( No Longer Available ) |
| 24-4 |
111144-04 |
Crossover Log ( No Longer Available ) |
