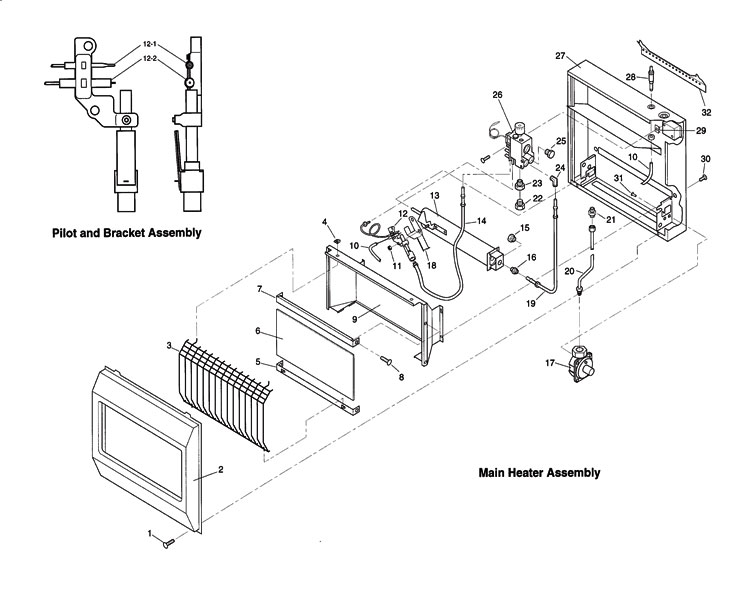

| 1 | 098304-01 | Screw #10x3/8" |
| 2 | 098742-03 |
Front Panel ( No Longer Available ) |
| 3 | 098197-03 | Grill Guard ( No Longer Available ) |
| 4 | 101108-01 | Grill Guard Clip ( No Longer Available ) |
| 5 | 098533-01AA | Bottom Glass Retainer ( No Longer Available ) |
| 6 | 098260-01 | Glass Panel ( No Longer Available ) |
| 7 | 098532-01AA | Top Glass Retainer ( No Longer Available ) |
| 8 | M11084-26 | Screw #10x3/8" ( No Longer Available ) |
| 9 | 098352-01BR | Deflector Unit ( No Longer Available ) |
| 10 | 098271-02 | Ignitor Cable ( No Longer Available ) |
| 11 | 098249-01 | Nut, M5 |
| 12 | 099440-05 |
ODS/ Pilot Assembly ( No Longer Available ) |
| 12.1 | 098514-01 | Thermocouple |
| 12.2 | 098515-01 | Ignitor Electrode ( No Longer Available ) |
| 13 | 099120-02 | Burner ( No Longer Available ) |
| 14 | 098517-01 | 3/16" Pilot Tubing ( No Longer Available ) |
| 15 | 098251-02 | Injector |
| 16 | 098250-01 | Injector Holder |
| 17 | 098867-04 | Pressure Regulator ( No Longer Available ) |
| 18 | 099553-01 | Pilot Shield |
| 19 | 098519-01 | 3/8" Outlet (Burner) Tubing ( No Longer Available ) |
| 20 | 098298-03 | 3/8" Inlet Tubing ( No Longer Available ) |
| 21 | 098265-01 | 3/8" NPT Male Elbow ( No Longer Available ) |
| 22 | 098246-02 | Control Valve |
| 23 | 098529-01 | Cabinet |
| 24 | 102445-01 | Piezo Ignitor |
| 25 | M11084-26 | Screw #10x3/8" ( No Longer Available ) |
| 26 | M11084-38 | Screw #8x3/8" |
| 27 | 098268-02 | 1/2" NPT Female Elbow ( No Longer Available ) |
| 28 | 098354-01 | Control Knob |
| 29 | 098508-01 | Valve Retainer Nut |
| 30 | 099066-01 | Mounting Bracket ( No Longer Available ) |
