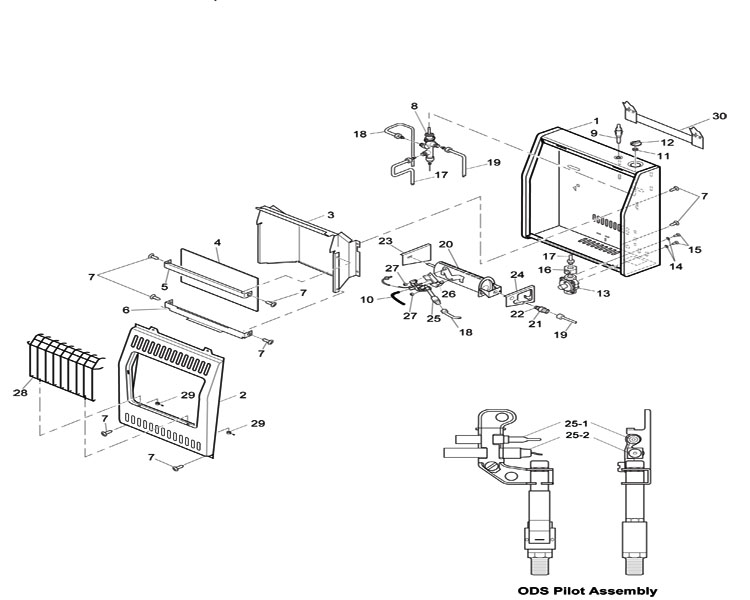

1 | L98409-11 | Cabinet Assembly ( No Longer Available ) |
2 | L98006-04 | Front Panel Assembly ( No Longer Available ) |
3 | L98410-08 | Reflector Unit ( No Longer Available ) |
4 | L98501-03 | Glass ( No Longer Available ) |
5 | L98502-03 | Upper Glass Retainer ( No Longer Available ) |
6 | L98807-03 | Lower Glass Retainer ( No Longer Available ) |
7 | L98817-01 | Self Tapping Screw ( No Longer Available ) |
8 | 099413-02 | Control Valve ( No Longer Available ) |
9 | 097159-04 | Piezo Ignitor |
10 | L98411-01 | Ignitor Wire ( No Longer Available ) |
11 | L98054-01 | Control Valve Fixed Nut |
12 | L98061-05 | Control Knob ( No Longer Available ) |
13 | L98029-04 | Pressure Regulator ( No Longer Available ) |
14 | L98801-01 | Washer ( No Longer Available ) |
15 | L98806-01 | Self Tapping Screw ( No Longer Available ) |
16 | L98915-03 | Pressure Tap Assembly ( No Longer Available ) |
17 | L98115-10 | Main Inlet Tube Assembly ( No Longer Available ) |
18 | L98123-10 | ODS Line Assembly ( No Longer Available ) |
19 | L98126-05 | Burner Tube Assembly ( No Longer Available ) |
20 | L98506-04 | Burner ( No Longer Available ) |
21 | L98507-02 | Burner Connector ( No Longer Available ) |
22 | L98508-12 | Injector ( No Longer Available ) |
23 | L98504-02 | Left Burner Support Bracket ( No Longer Available ) |
24 | L98505-02 | Right Burner Support Bracket ( No Longer Available ) |
25 | L98071-06 | ODS/Pilot Assembly ( No Longer Available ) |
25-1 | 098514-01 | Thermocouple |
25-2 | L98071-07 | Ignitor Electrode ( No Longer Available ) |
26 | L98515-01 | ODS Lower Deflector ( No Longer Available ) |
27 | L98514-01 | Nut ( No Longer Available ) |
28 | L98010-08 | Grill ( No Longer Available ) |
29 | L98011-01 | Grill Fastener |
30 | L98085-02 | Mounting Bracket ( No Longer Available ) |
